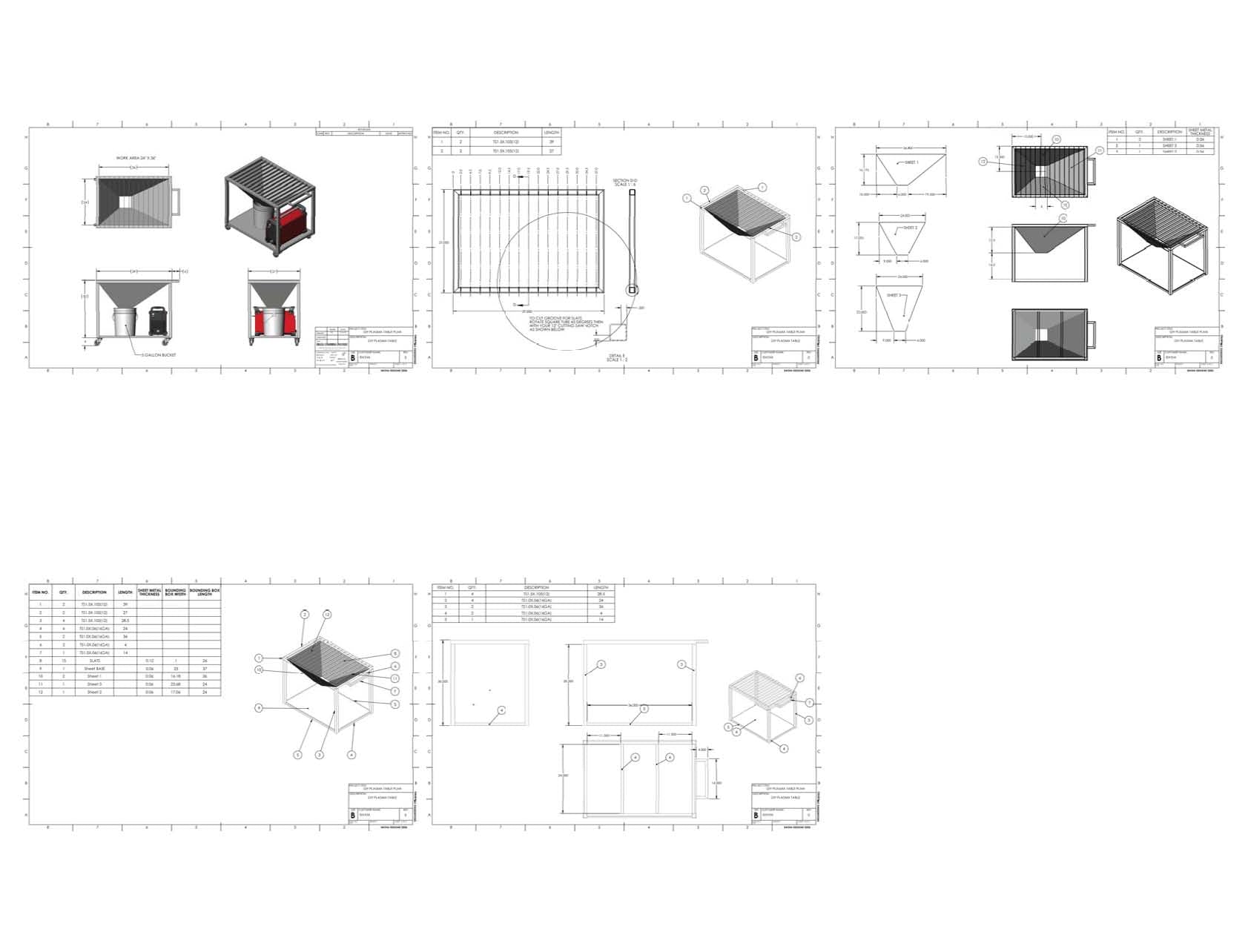

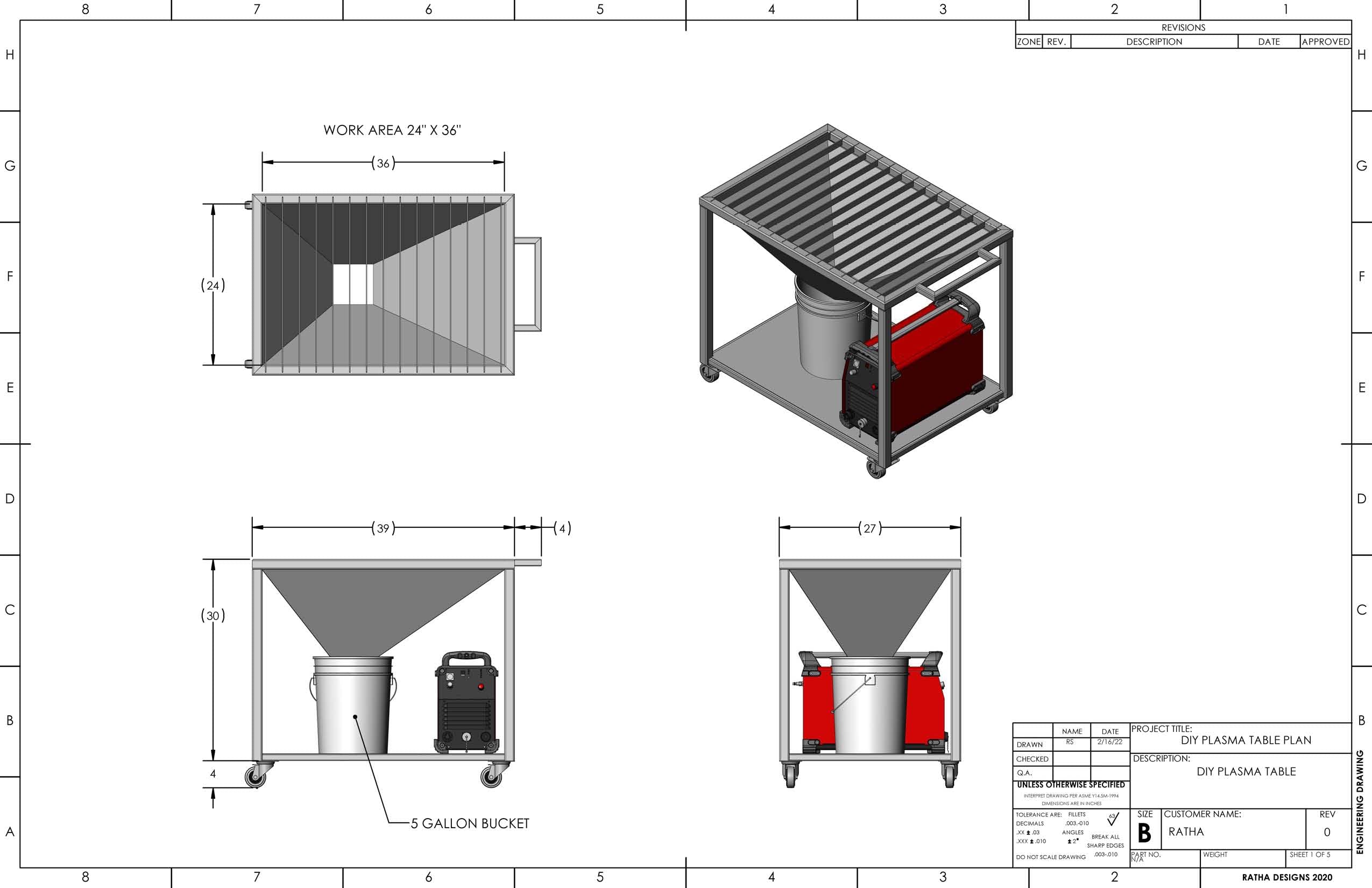

DIY Plasma Table Plans [Standard] 24" x 36 " Work Area + CAD Model

NO PHYSICAL ITEMS WILL BE SHIPPED.

Since I’m a CAD guy, I laid everything out in SolidWorks down to the nuts and bolts. Therefore you’ll measure once and cut once without wasting material.

With the download you will also get a native SolidWorks 3D CAD Model of the project that you can use for measurements or modify to fit you needs.

There will also be a universal .step file that should work with most 3D CAD applications as well. These both contain the same model. If you need any other formats, contact me, and I will check if I can export them. You will need some kind of CAD software to open and use these files but they are optional and just provide additional reference. All the necessary information for building is already in the PDF file

Feel free to reach out if you have any questions.

These plans are for private/personal use only. You may not produce or sell this commercially without permission. Do not copy or redistribute these files.
