Tool Die Extender/Holder – Langmuir Pressbrake Titan 25T

Sale price$139.00

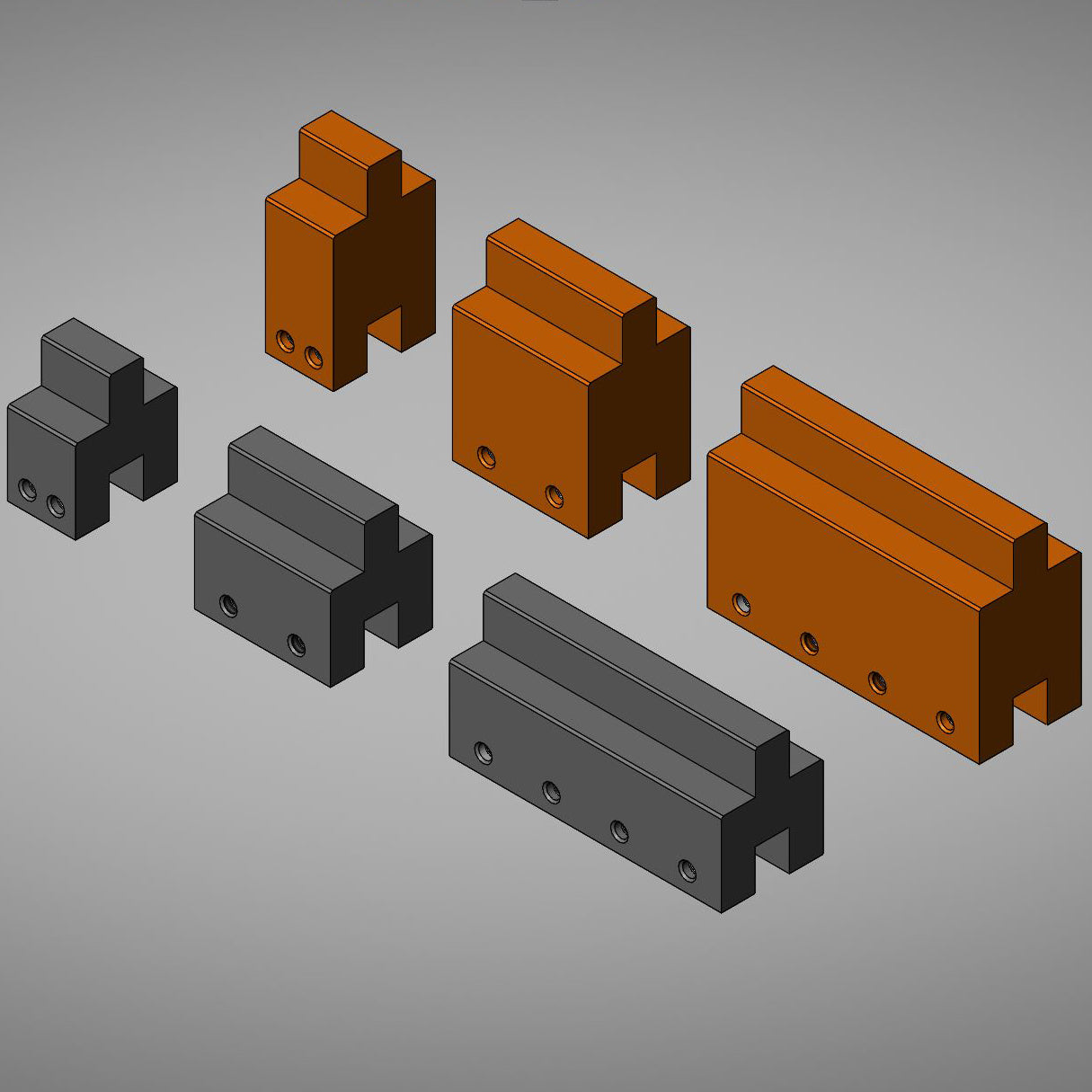

Die Extender Segmented Set :1.25" x 1" Wide | 1.25" x 2" Wide | 1.25" x 4" Wide
Quantity:

Need Extra Bending Clearance for your Langmuir Titan 25T Press Brake?

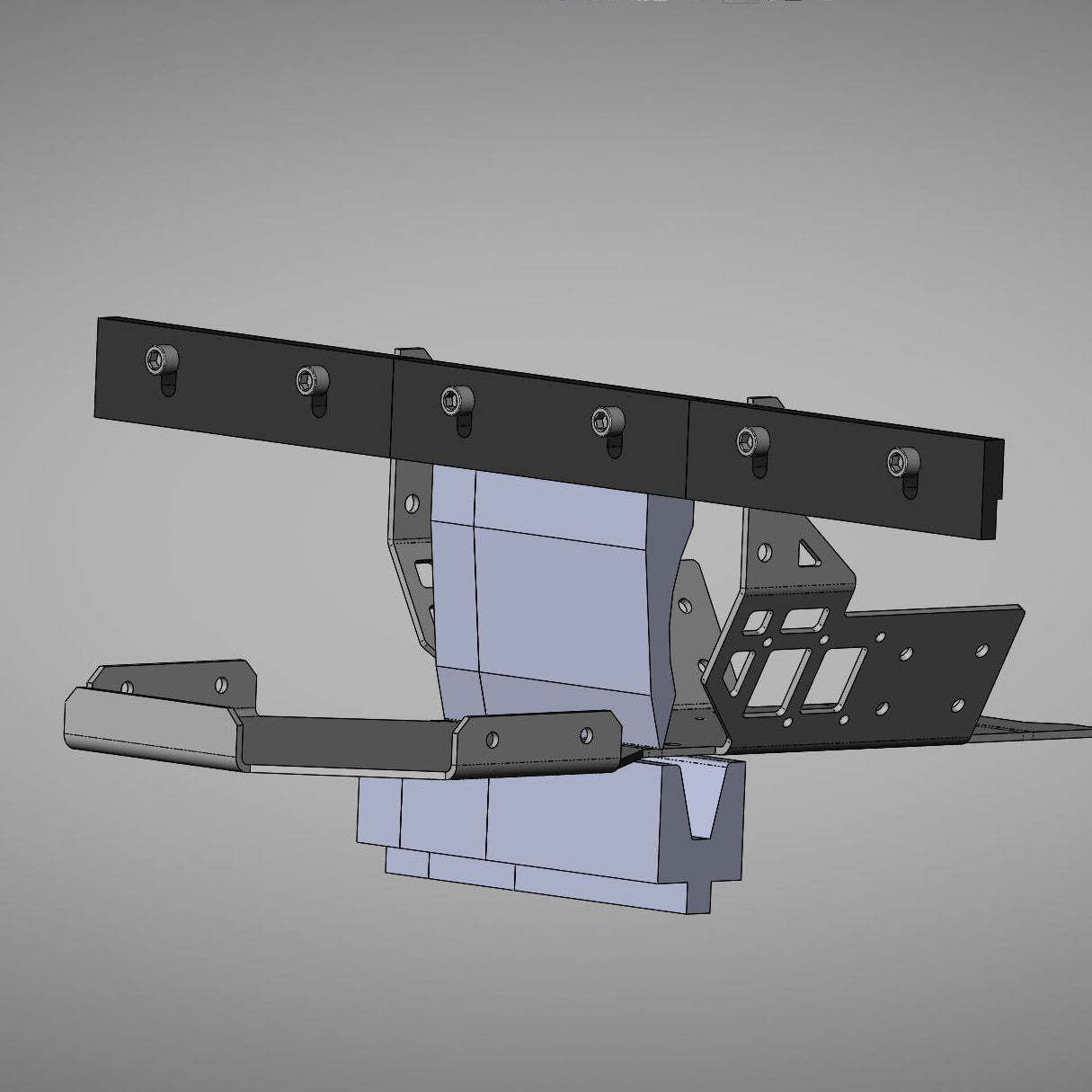

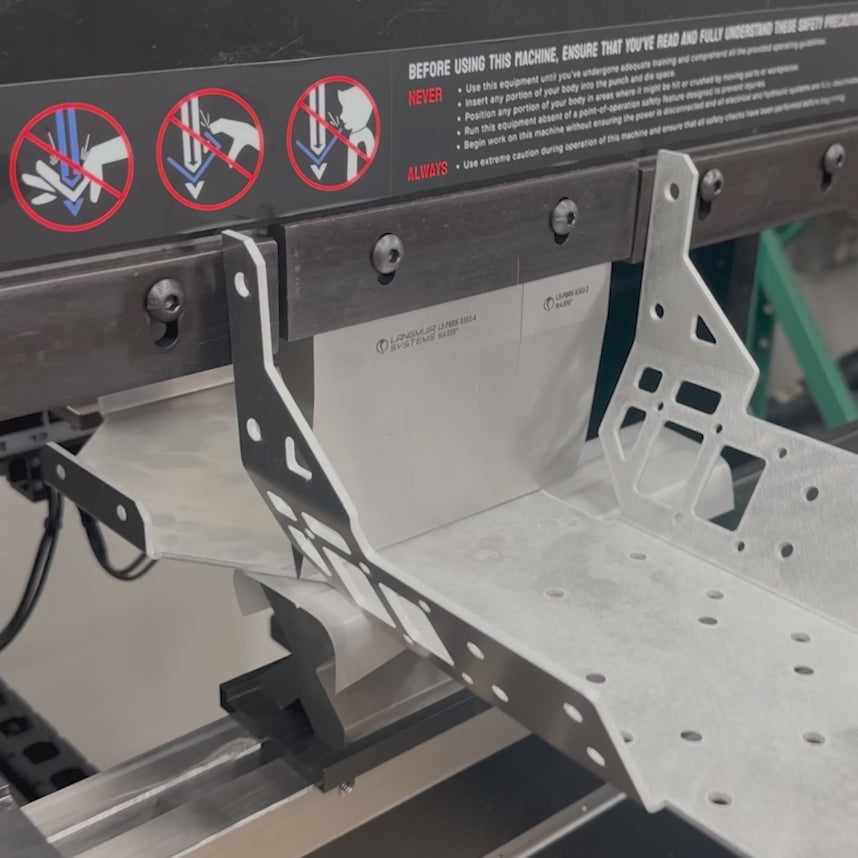

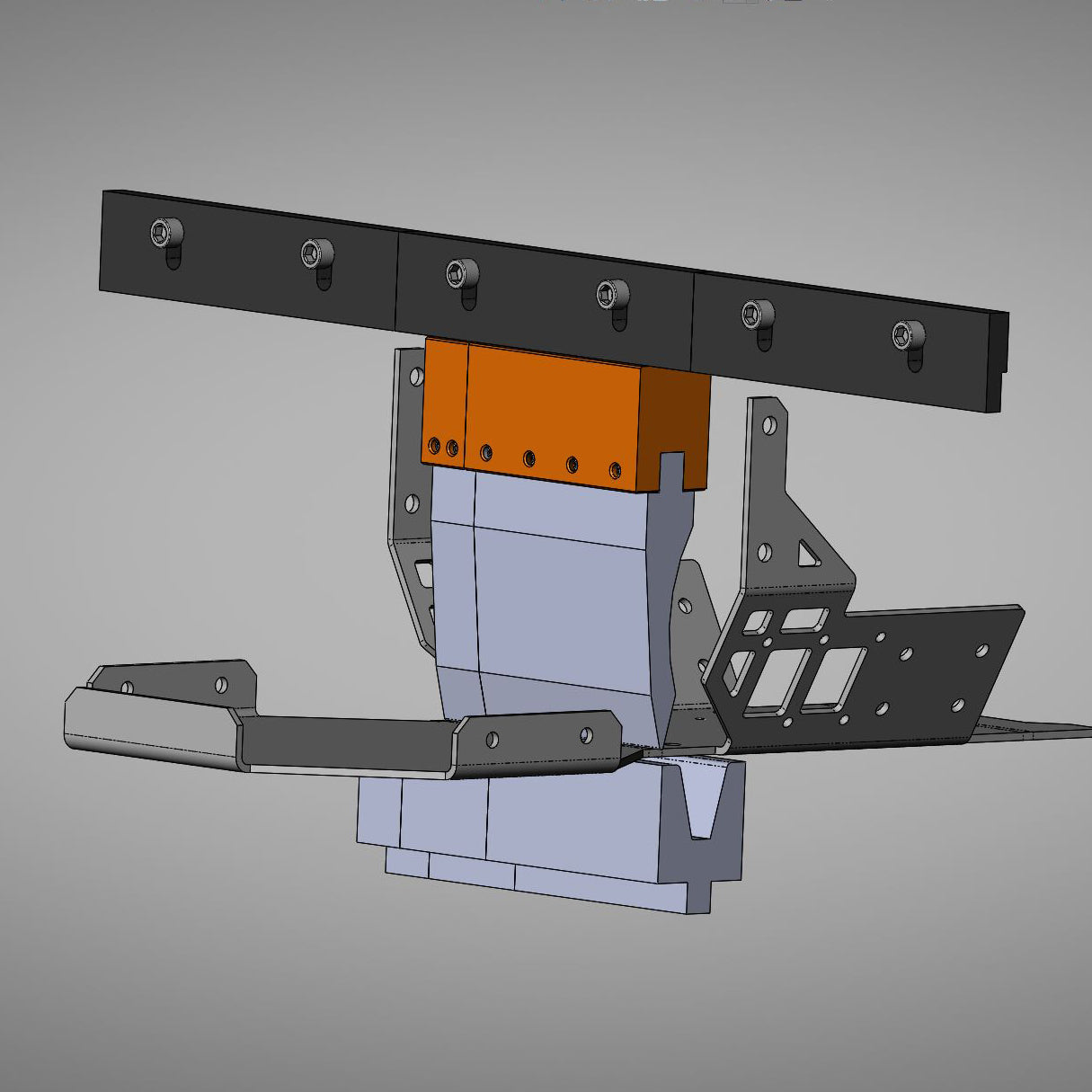

These Die Extenders for the press brakes are essential attachments that expand the working length or depth of a press brake die, enabling it to handle larger or more complex bending tasks. These Extenders help avoid common part collisions during the bend of deep U-shape parts, as well as long return flanges that end up hitting the ram or punch.

Extenders are CNC Machined from high-strength and wear-resistance steel and Black-Oxide Coated

Base on the max open height of the Langmuir Press Brake:

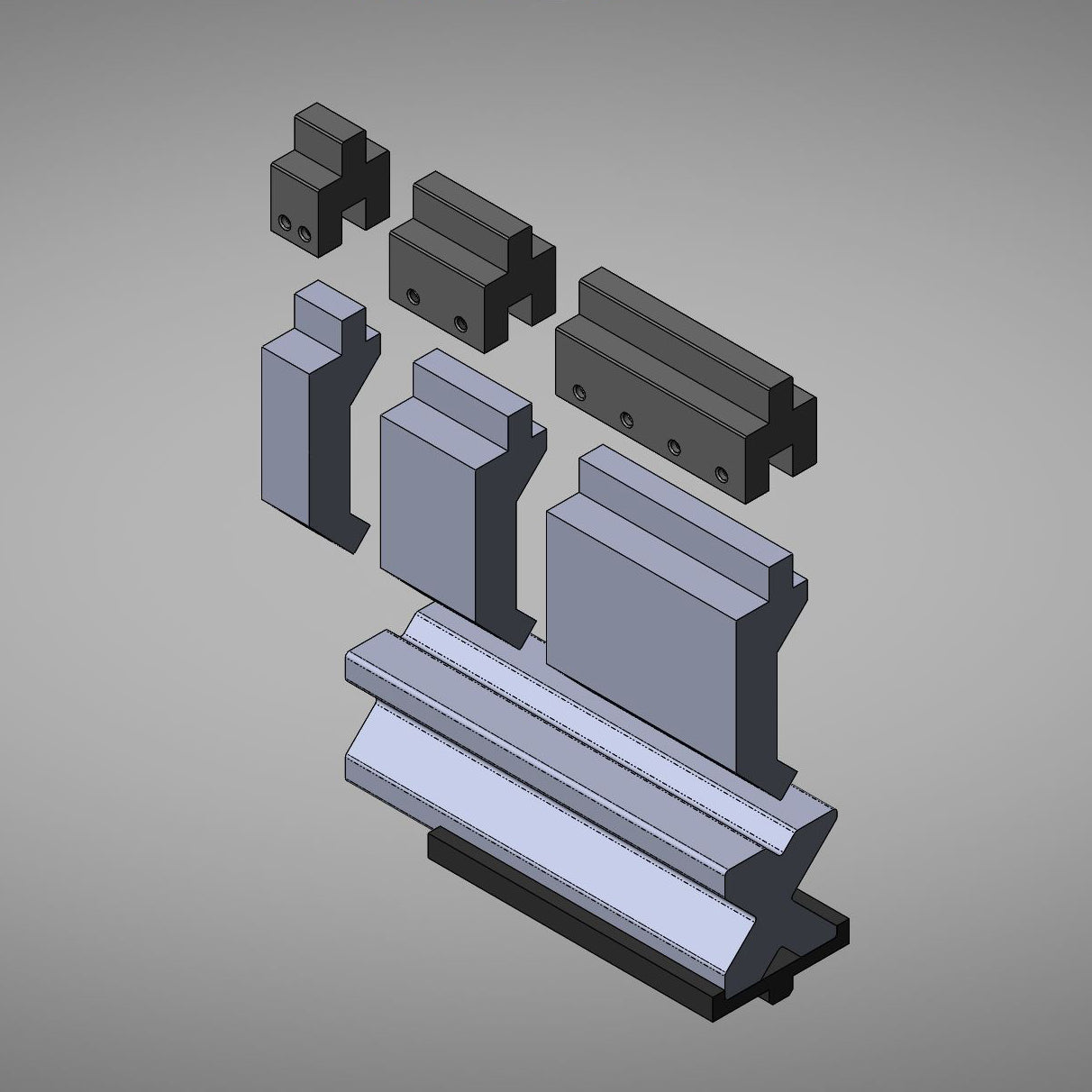

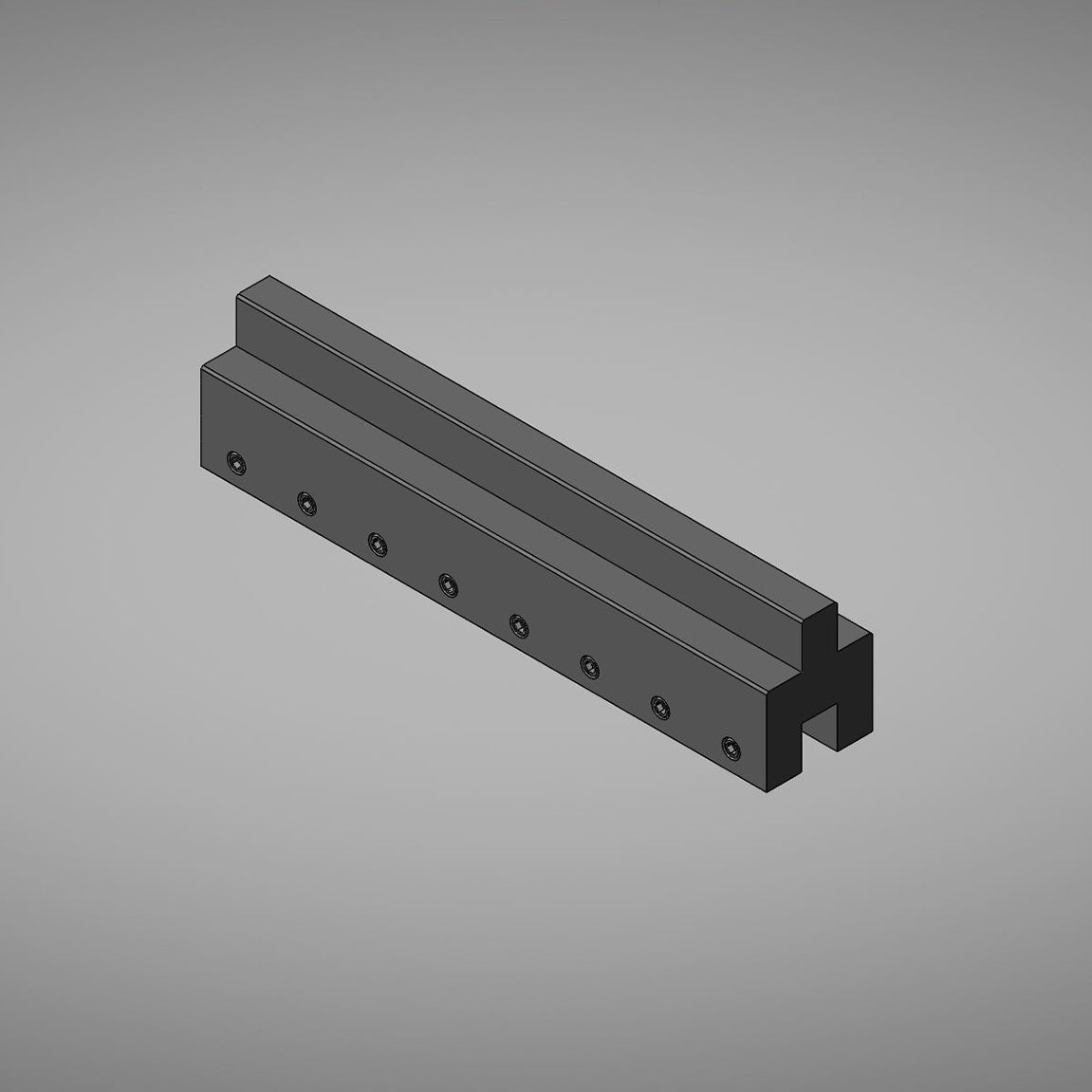

The 1.25" Extender is design to work with ALL punch/die combinations EXCEPT Acute 30 Punch [3169] and the Extreme Gooseneck 85° Punch [3624]

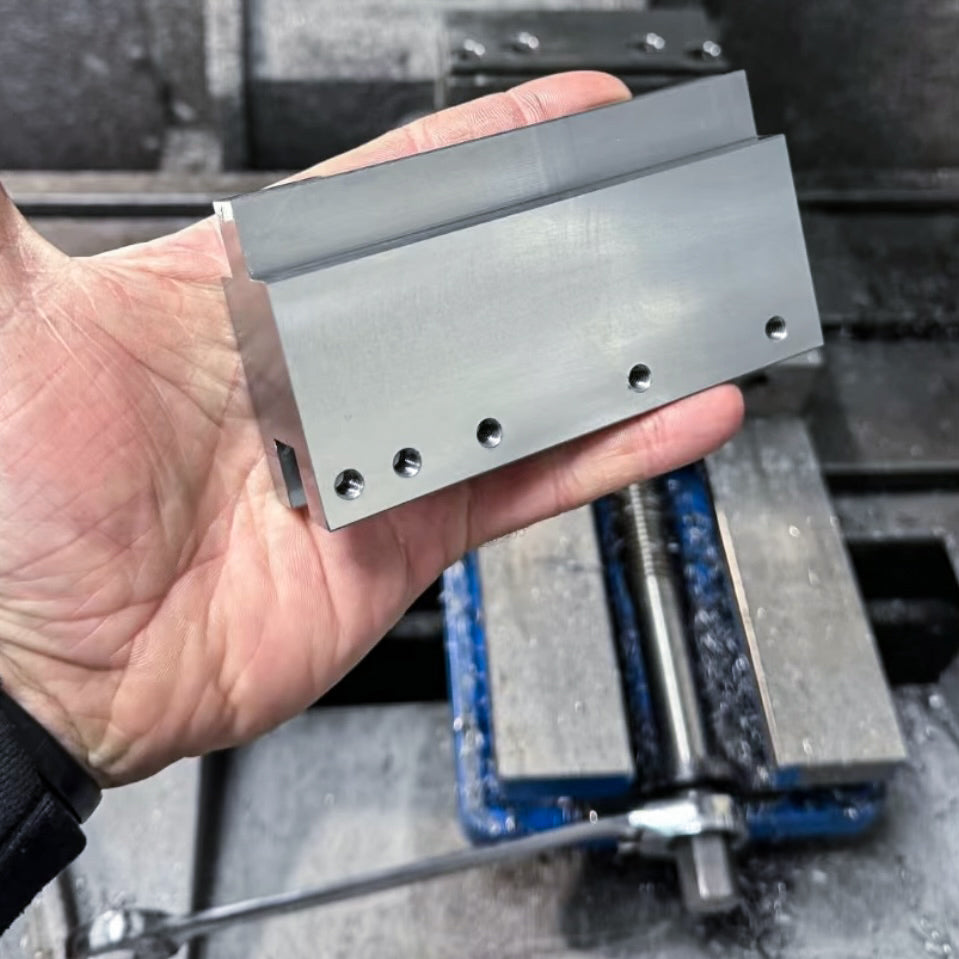

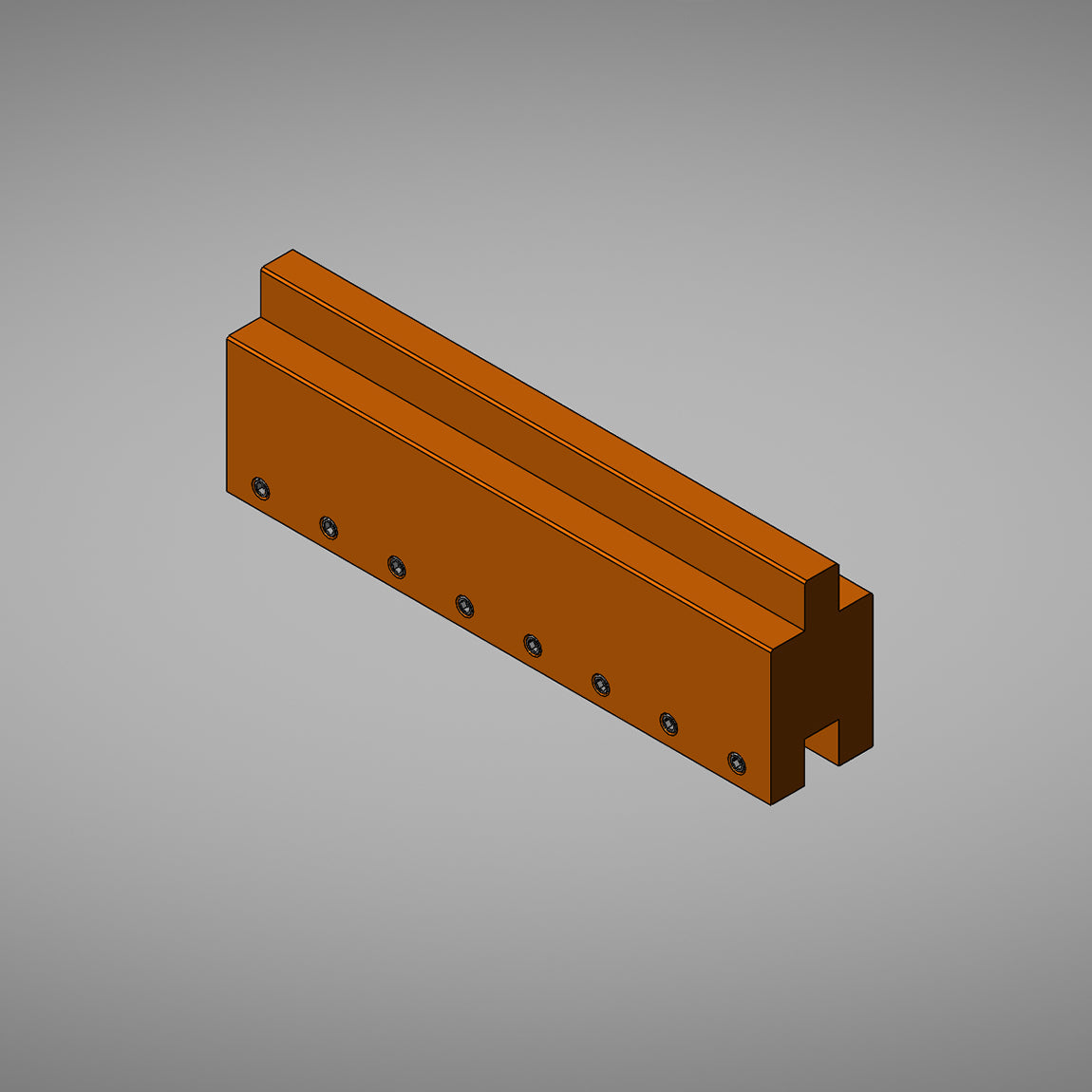

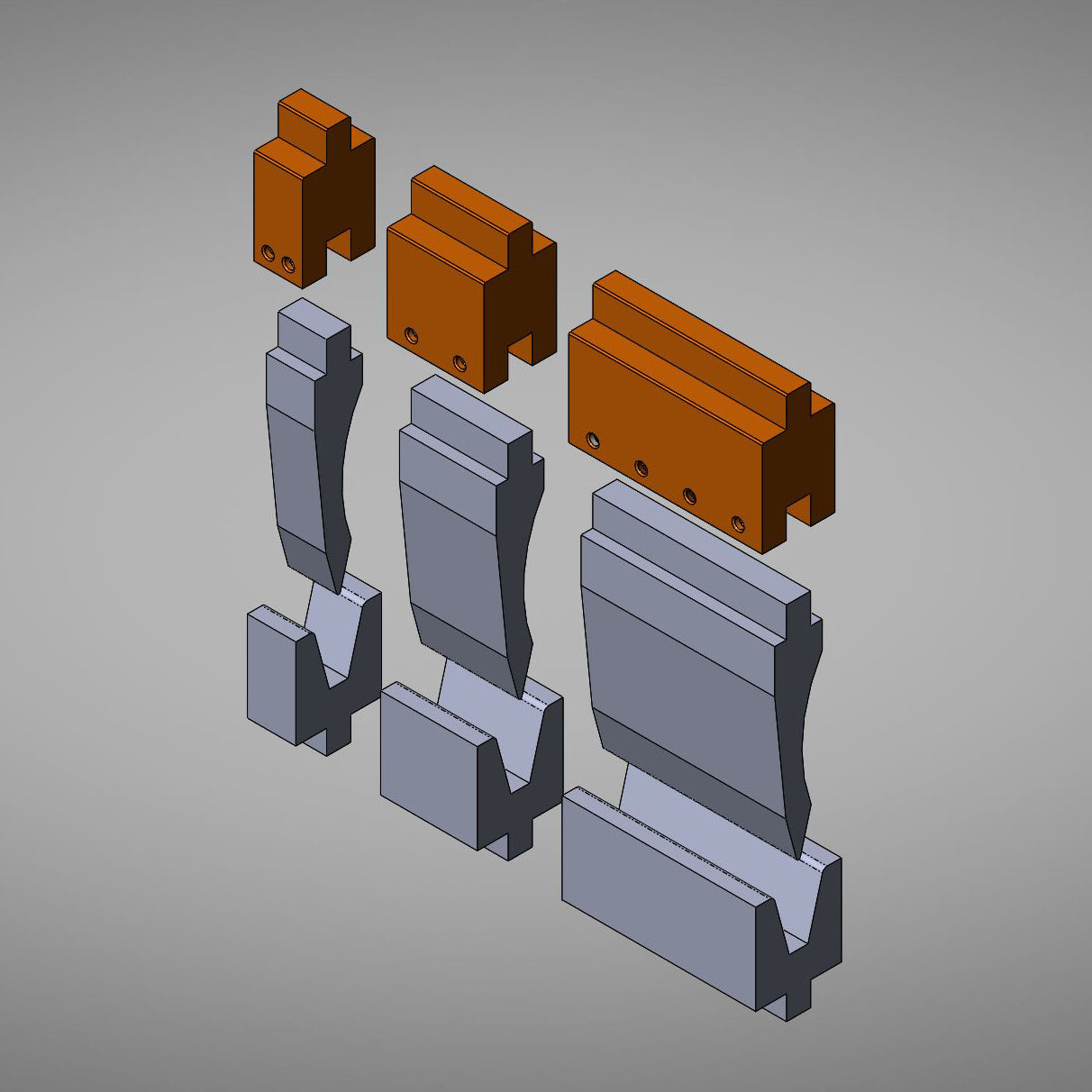

The 2" Extender is ONLY designed to work with these any of these punch/die combinations:

  • Standard 30° Punch [9302]
  • Heavy Duty 35° Punch [2287]
  • Gooseneck 88° Punch [8392]
  • Acute 8mm 30° Die [5623]
  • Acute 16.5mm 30° Die [9858]
  • Acute 26mm 30° Die [9355]
