Welding Table Plans + Bonus 3D Model [Standard & Metric] | DIY | Multipurpose Workbench | Build Plans | Fabrication

The ultimate Welding Table Plans

Buyer Note: This listing is a digital download to be printed at home. ETSY WILL EMAIL YOU THE PDF FILE AUTOMATICALLY. Check Spam box if it doesn’t come through.

NO PHYSICAL ITEMS WILL BE SHIPPED.

Since I’m a CAD guy, I laid everything out in SolidWorks down to the last detail. I even made a video showing how. https://www.youtube.com/watch?v=gDsJVjCeO4E&t=27s Therefore you’ll measure once and cut once without wasting material.

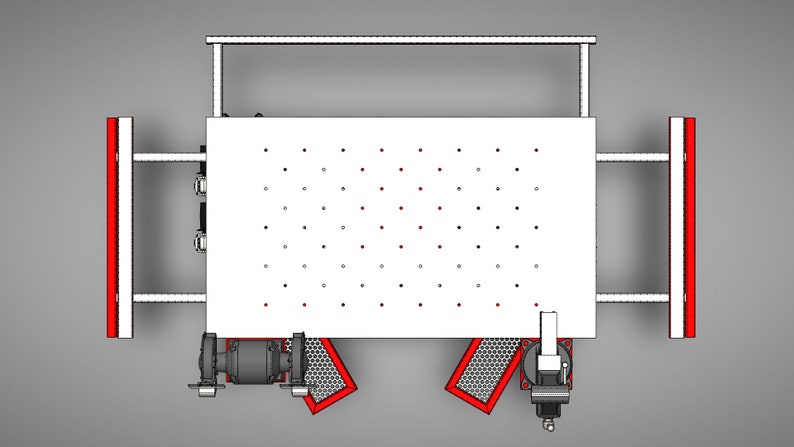

With your purchase you will receive high quality, comprehensive plans for a 30” Wide x 57” Long x 37” Tall DIY Welding Table with integrated slide out for working with larger projects if needed.

DIY Welding Table Plan Includes: 19 Highly detailed pages of 11x17 PDF Plans including:

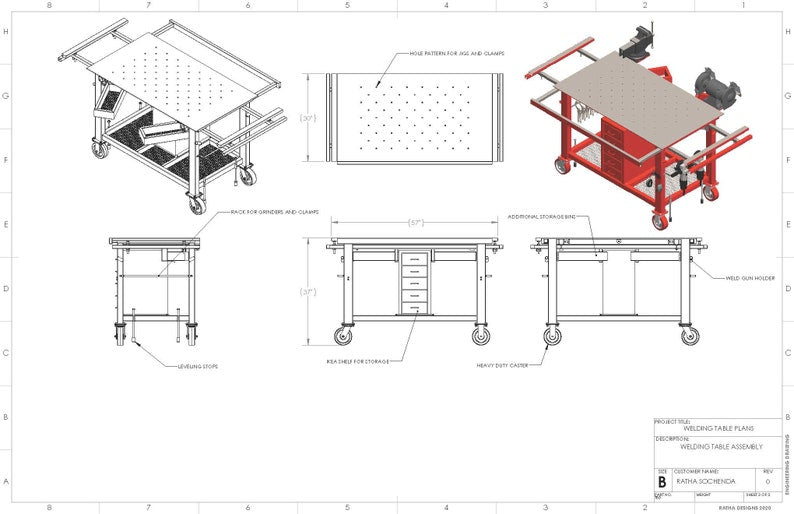

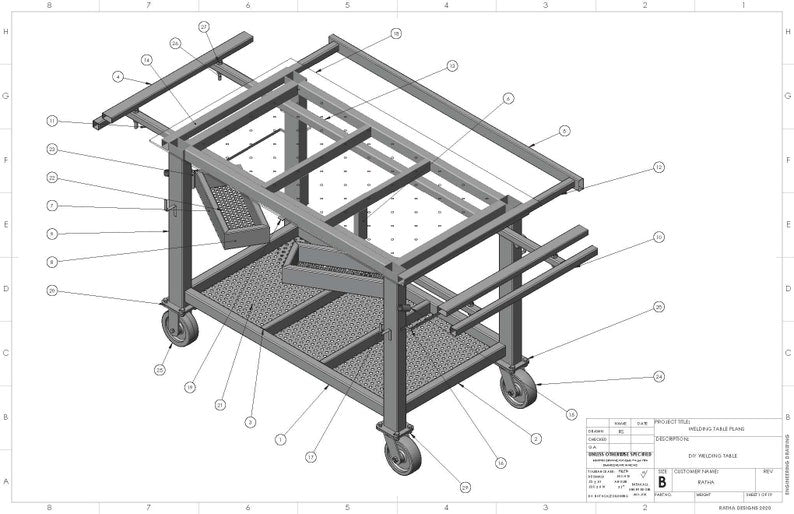

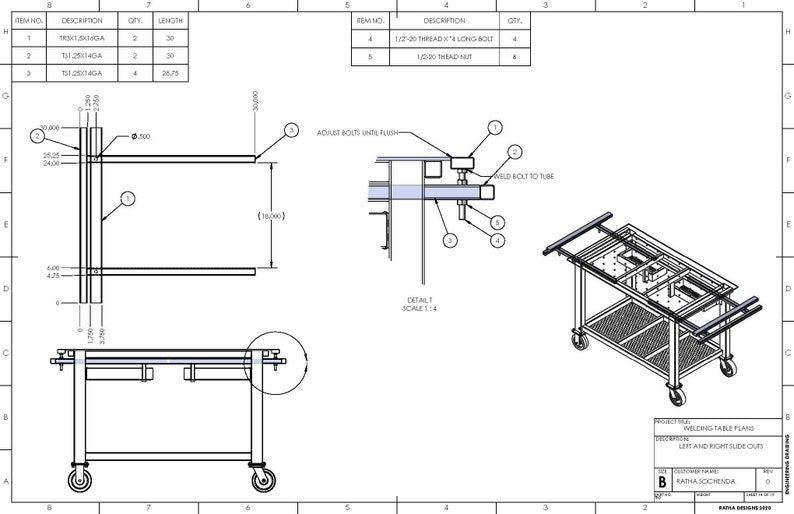

- Comprehensive detailed drawing with all key measurements
- Cutlist for materials (tubing, flatbar, sheet metal, etc.)
- Easy to follow step-by-step instruction for assembly
- SolidWorks 2018 Native & .Step 3D CAD Model to be modified to fit your specific needs.
- Optional tool add-ons

Features:

- Slide outs for working for larger projects
- Removable hitch plate/receiver for bench grinder or table vice
- Table Plate hole pattern for fixtures and clamps
- Weld gun holder
- Angle grinder holder
- Clamp holder
- Additional storage bins and drawers
- Adjustable leveling feet

Tools Required to build this table:

- Angle Grinder
- Mig Welder
- Chop Saw
- Square

Feel free to reach out if you have any questions.

Feel free to reuse any of the assets included in this download for personal and commercial projects. The only thing I ask is that you don't resell the files.
