Wide-Face Dimple Dies – Print Your Own!

Sale price$7.00
Quantity:

Instant Download for 3D printed Dimples Dies – STL/STEP

By going with a wider face/large contact over traditional dimple dies I was able to reduce or eliminate the warpage you normally get in the sheetmetal plate during the pressing process.

Benefits:

  • Reduce sheetmetal warpage over traditional dies
  • Mark Free compared to steel dies

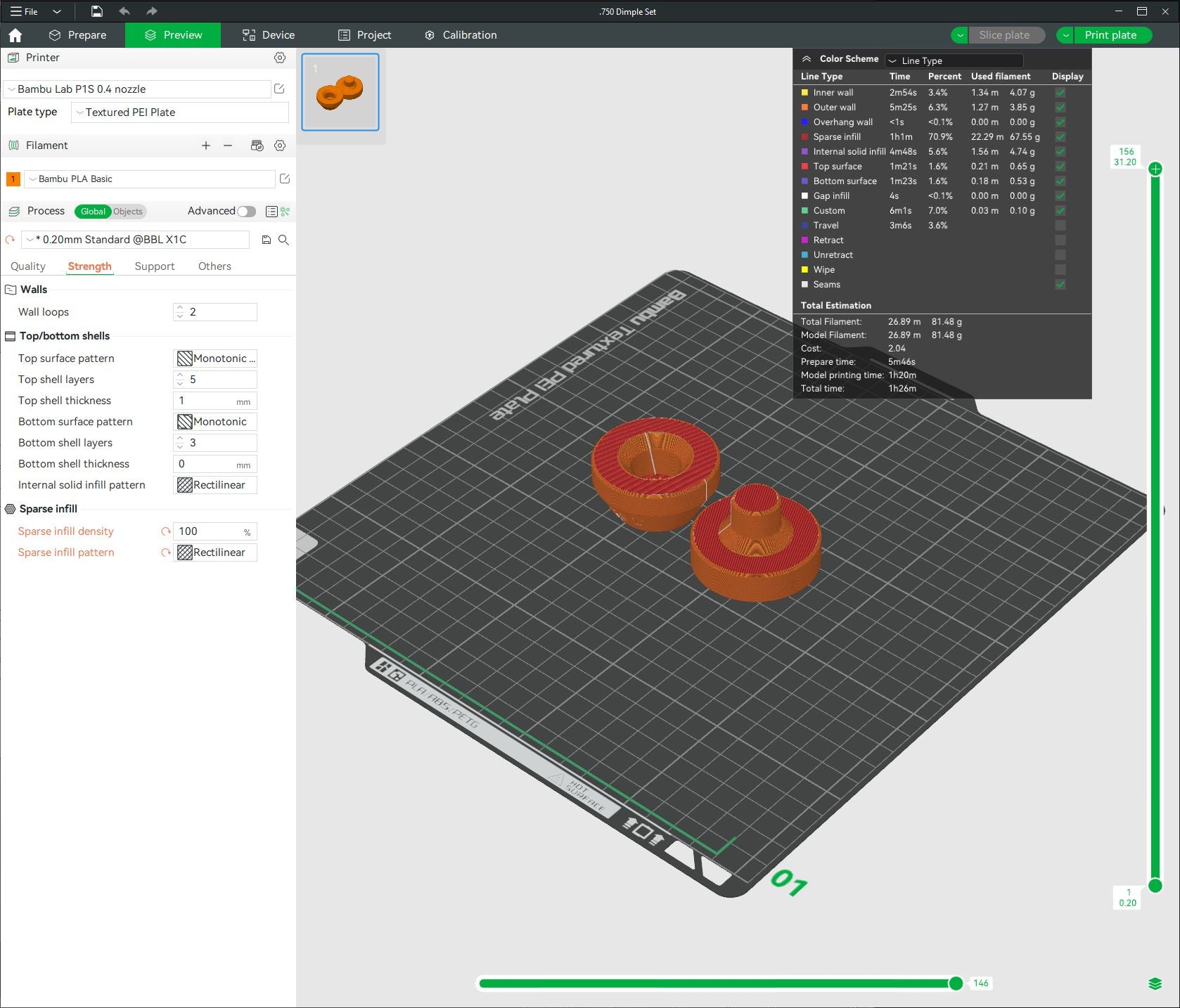

Filament Material Settings: PLA @ 100% Infill

Files Include these following Sizes:

  • 1/2″
  • 3/4″
  • 1″
  • 1-1/4″
  • 1-1/2″
  • 1-3/4″
  • 2″
  • 2-1/4″
  • 2-1/2″

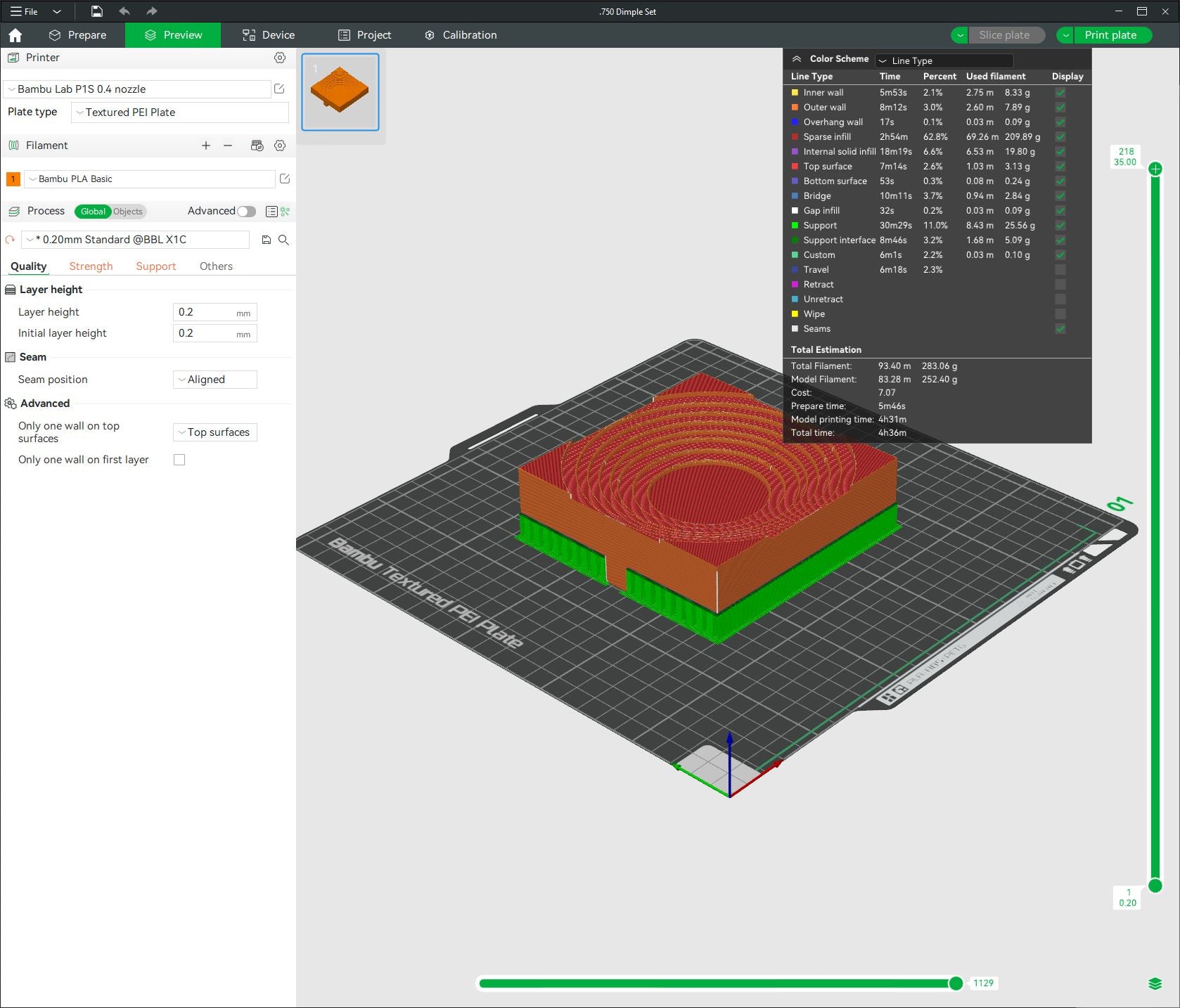

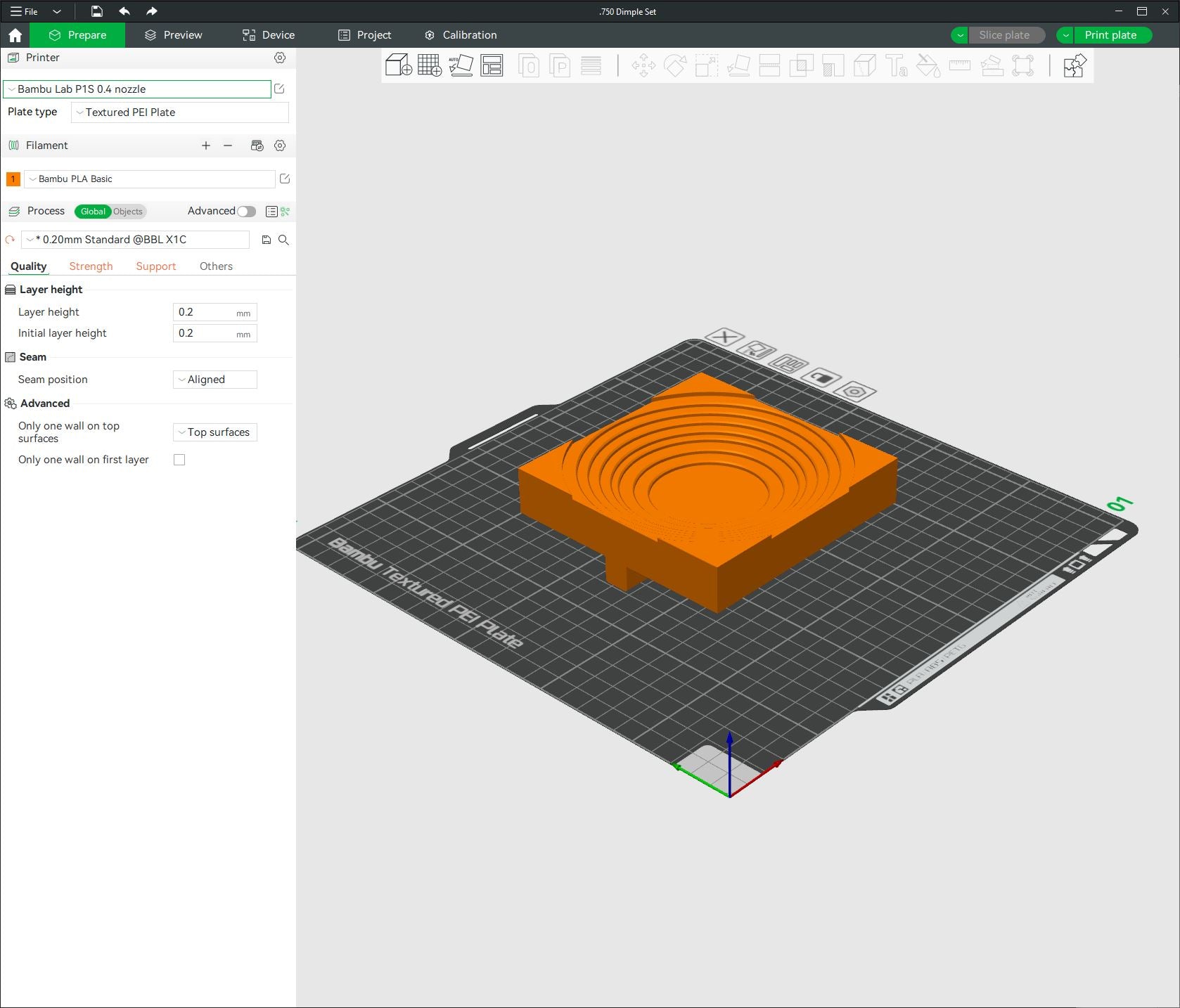

*Bonus: Langmuir Pressbrake Bottom Dimple Die Base
*Dimple results may vary from material/thickness.

*3D Printed Dimples ideal for prototyping and light duty sheetmetal applications.

*So far I’ve tested the 3D printed dimples with 5052 H32 x .090″ Thick with great results!
